Puff Snack Food Extruder Corn Snack Extruder Puffs Food Maize Machines
Brief Introduction of the core-filling snack machine:
Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
Corn puff snack machine Snacks Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.
Details & Features:
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
Standard Configurations
| Motor | WEG or Siemens |
| Electric Parts | ABB, Switzerland or Schneider, France |
| PLC & Touch Screen | Siemens, Germany |
| Bearings | NSK, Japan |
| Controller | PLC and touch screen control whole line, not one or two equipment |
| Protector | 3 kinds of protectors: overload, overcurrent and overheat. Control cabinet is 24V safe voltage |
| Materials | Cover body, mesh belt and all the parts touching with food are made by Stainless Steel 304 |
Technical parameter:
| Model | SR-65 | SR-70 | SR-85 |
| Capacity | 120-150kg/hr | 200-260kg/hr | 300-500kg/hr |
| Power | 70kw | 90kw | 120kw |
| Dimension | 15x5x3m | 18x5x3m | 22x5x3m |
| Workers Needed | 1-2 | 1-2 | 2-3 |
Flow chart:
Mixing materials -Screw Conveyor- Extruding -Center-Filler- Cutting machine - Drying - Flavoring (spraying oil & flavor powder)-cooling conveyor

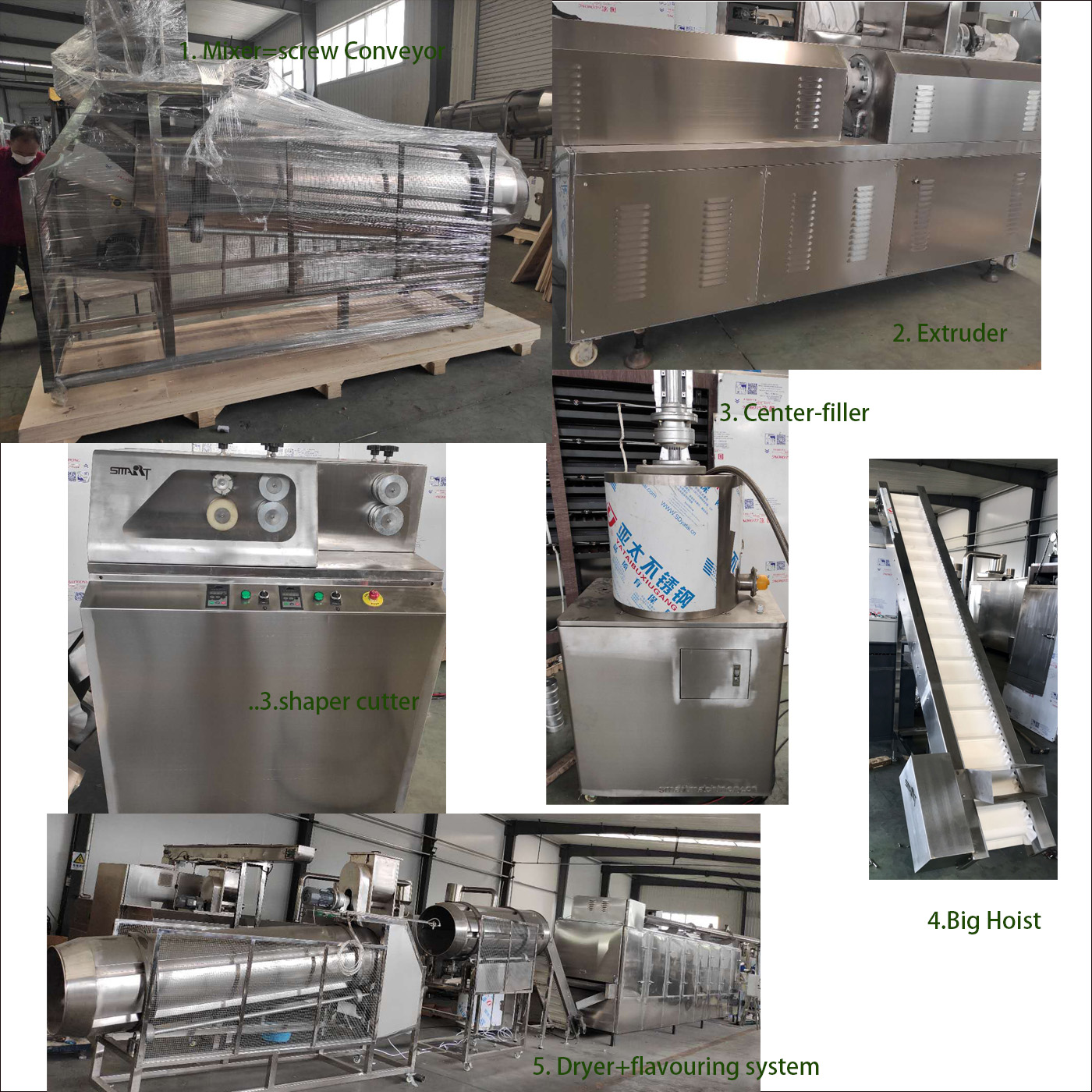

Package and Delivery picture:
corn puff snack machine Service & Turnkey Solution:
a. ) Consultation service before, during, and after sales;
b. ) Project planning and design service;
c. ) Debugging of equipment until everything is functional;
d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. ) Training of equipment maintenance and operating personally;
f. ) New production techniques and formulas;
g. ) Provide 1 year complete warranty and life-time maintenance service.
Test video:
Puff snack machine:
Core filling snack
